30-Amp Wanderer Li PWM Charge Controller

Description

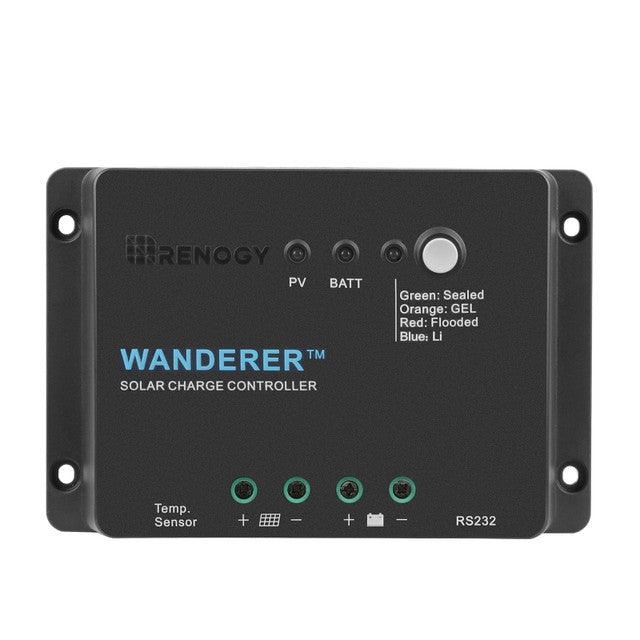

The Renogy Wanderer Li 30A PWM Charge Controller is a compact and reliable solar charging solution designed for 12V off-grid systems. It integrates efficient PWM charging to help increase battery life and improve system performance, with full support for Lithium, AGM, Gel, and Flooded batteries. Featuring 4-stage charging, temperature compensation, multiple load modes, and an RS232 port for optional Bluetooth monitoring, it is well-suited for RVs, boats, cabins, and small off-grid setups.

Key Features

• 30A PWM Charging – Efficient 4-stage charging (Bulk, Boost, Float, and Equalization) optimized for battery longevity.

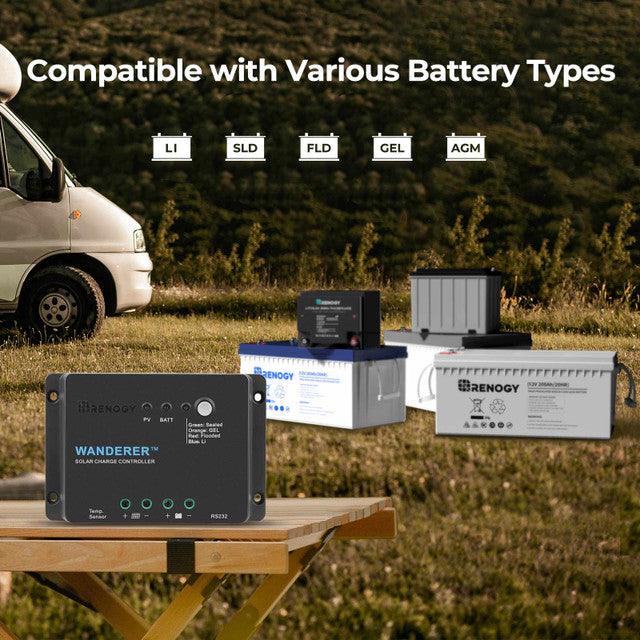

• Lithium Battery Compatible – Fully supports LiFePO4 as well as Sealed (AGM), Gel, and Flooded batteries.
• Temperature Compensation – Automatically adjusts charging parameters based on battery temperature for better performance and longer lifespan (sensor function included).
• Multiple Load Control Modes – Flexible load options to match different power needs and applications.

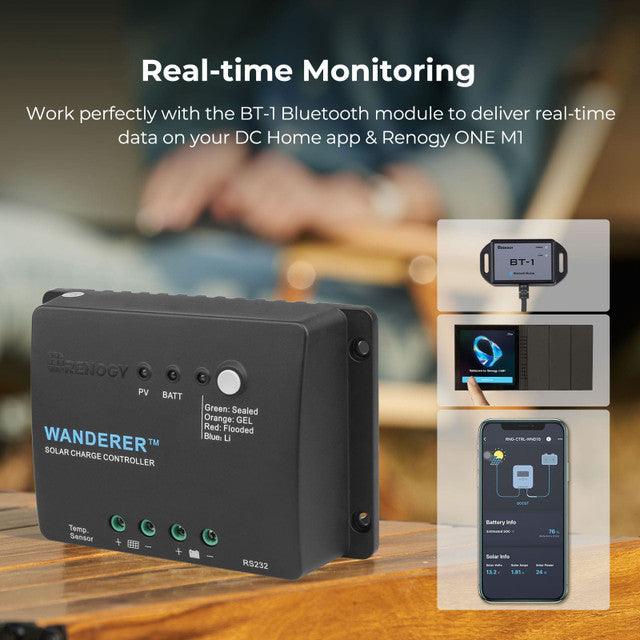

• RS232 Port for Bluetooth – Compatible with the Renogy BT-1 module for remote monitoring and control via the Renogy app.
• Comprehensive Protections – Safeguards against overcharge, over-discharge, short circuit, overload, reverse polarity, and reverse current.
• Compact & Lightweight Design – Easy to install in tight spaces; weighs approximately 0.65 lbs.

Perfect For

• 12V off-grid solar systems
• RVs, camper vans, and trailers
• Boats and marine applications
• Cabins, sheds, and small residential setups
• Lithium or traditional lead-acid battery banks

Specifications

• Nominal System Voltage: 12V DC
• Rated Charge Current: 30A
• Max. PV Input Voltage: 25V DC
• Max. PV Input Power: 400W
• Self-Consumption: <10 mA
• High Voltage Disconnect: 16V
• Boost Duration: 120 min
• Temperature Compensation: -3 mV/°C/2V
• Working Temperature: -20°F to 113°F
• Max. Wire Gauge: Up to 8 AWG
• Weight: 0.65 lbs
• Dimensions: 6.45 × 4.31 × 1.76 in
• Enclosure: IP20
• Compatible Accessory: Renogy BT-1 Bluetooth Module (optional)

Package Includes

• Renogy Wanderer Li 30A PWM Charge Controller × 1
